Upper PCB Replacement

TABLE OF CONTENTS

• Overview
  • Tools required
  • Replacement parts required
• Replacement Instructions

Overview

A step-by-step guide to replacing the upper PCB.

Tools required

• 3 mm hex key

Replacement parts required

• Kit, Cockpit cover w/PCBA and HDWR (000-7977)

Replacement Instructions

1. Unplug the bike,

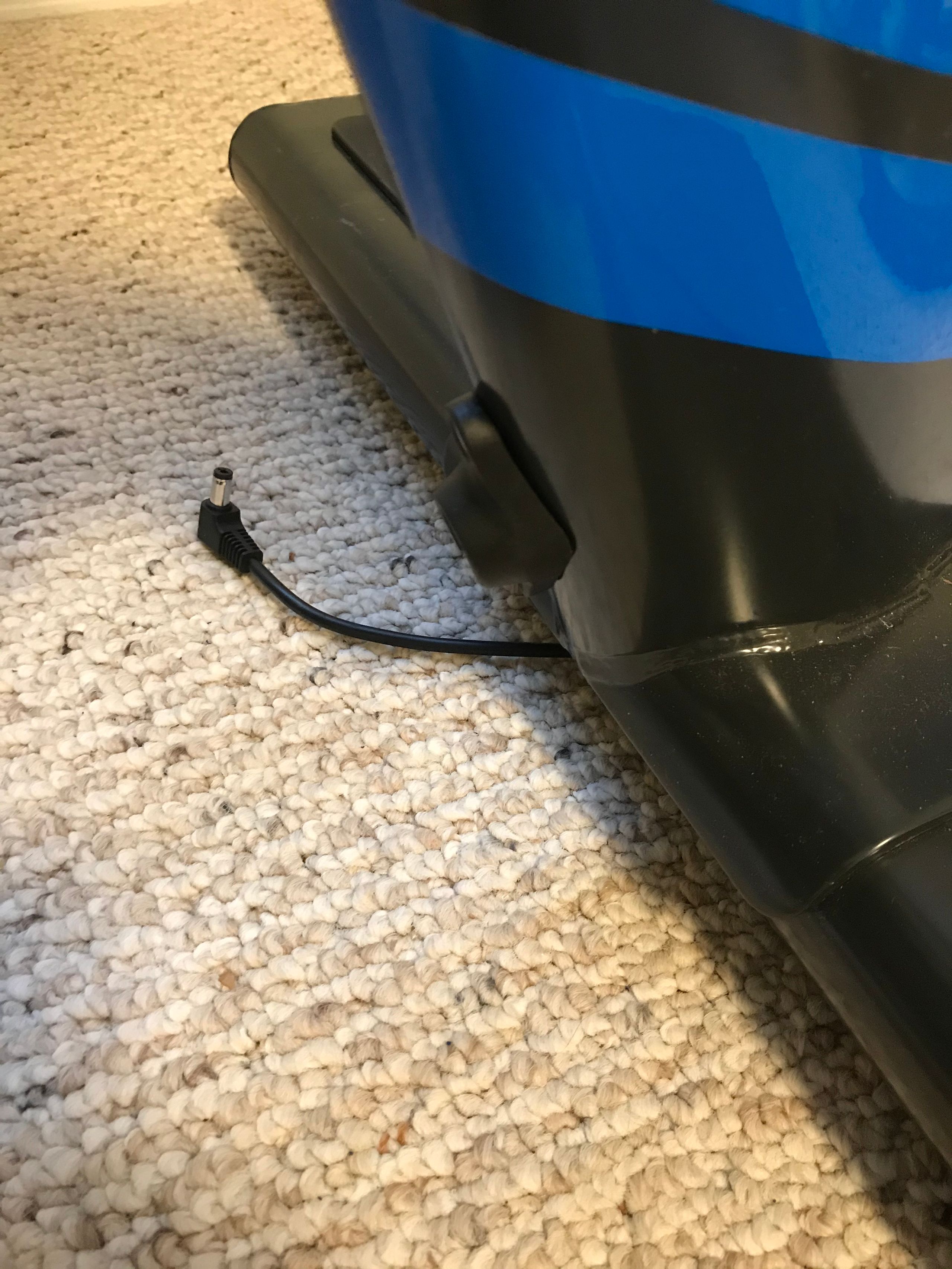

   Make sure the bike is unplugged at the lower stabilizer, not just from the wall.

2. Remove the 4 screws under the phone holder.

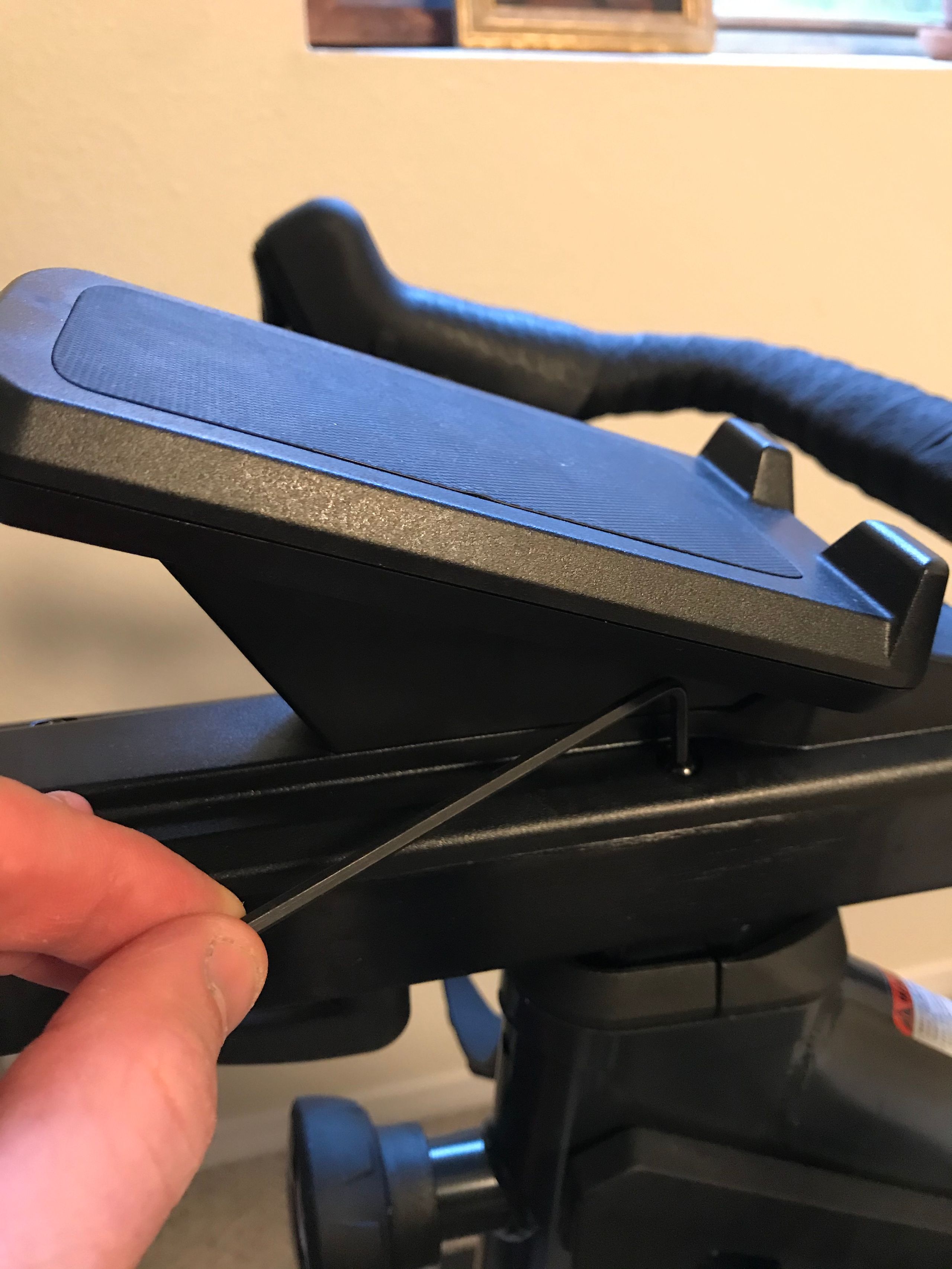

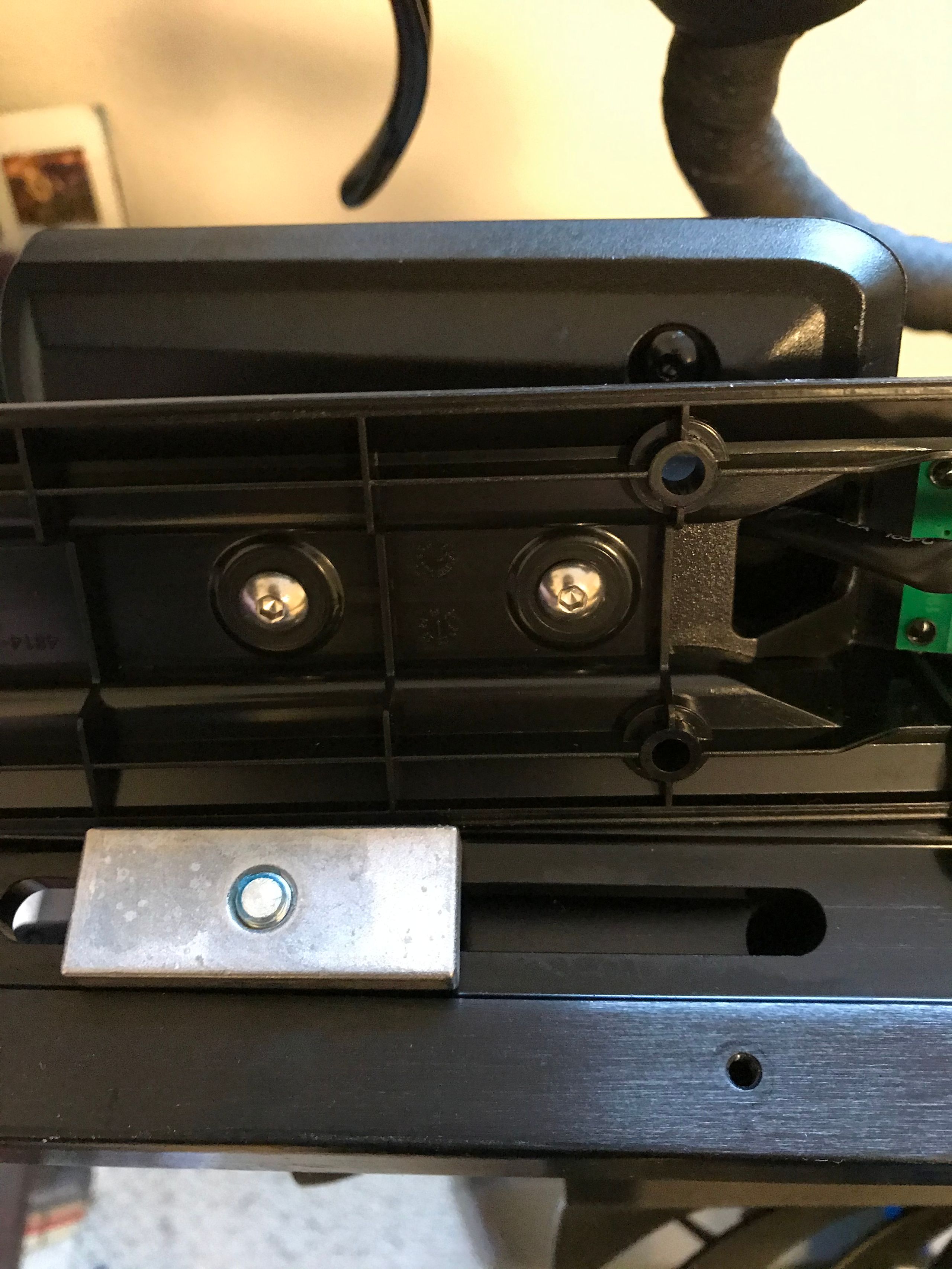

   1. Use the 3 mm hex key to remove the 4 screws pictured below:

      TIP: It is difficult to remove the screws closest to the handlebars. You might need to use the short end of the hex key.


   2. Save these screws for later.
3. Remove the phone holder.

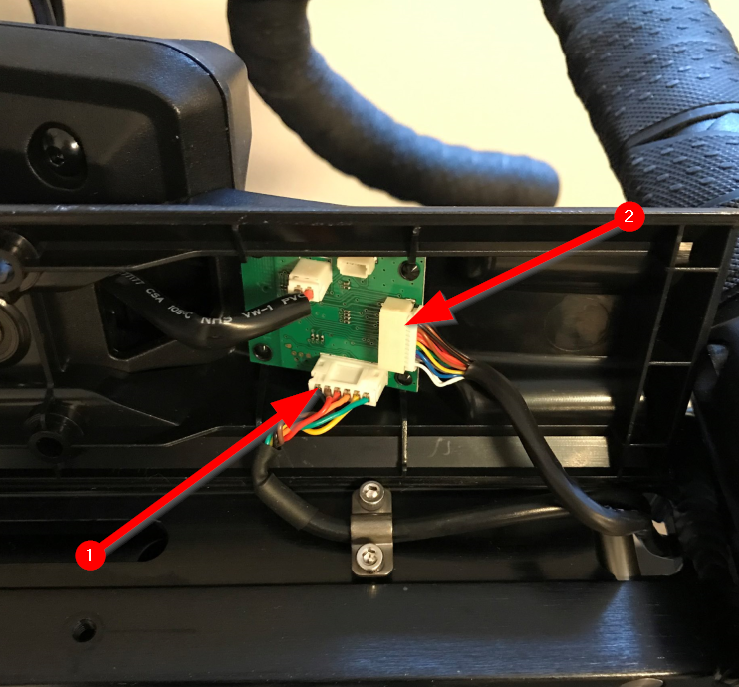

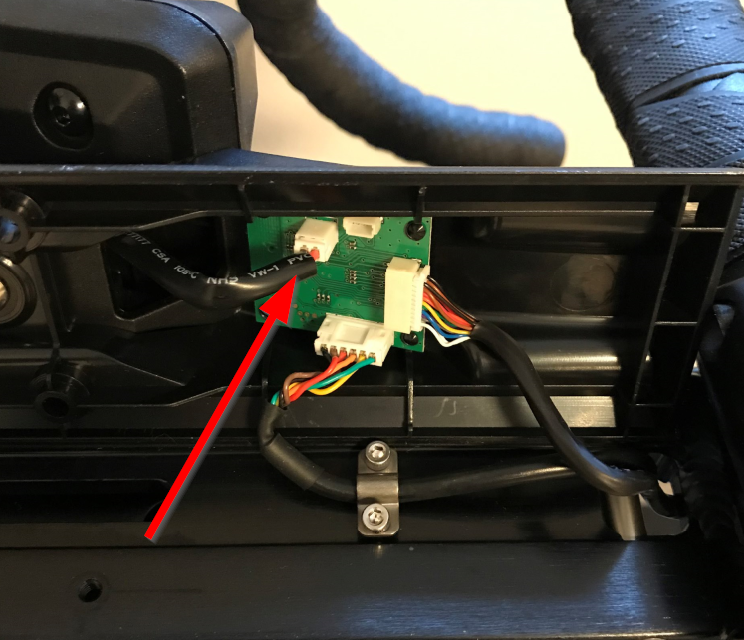

   1. Remove the 2-wire connector by gently pulling the connector from the receiver on the board.

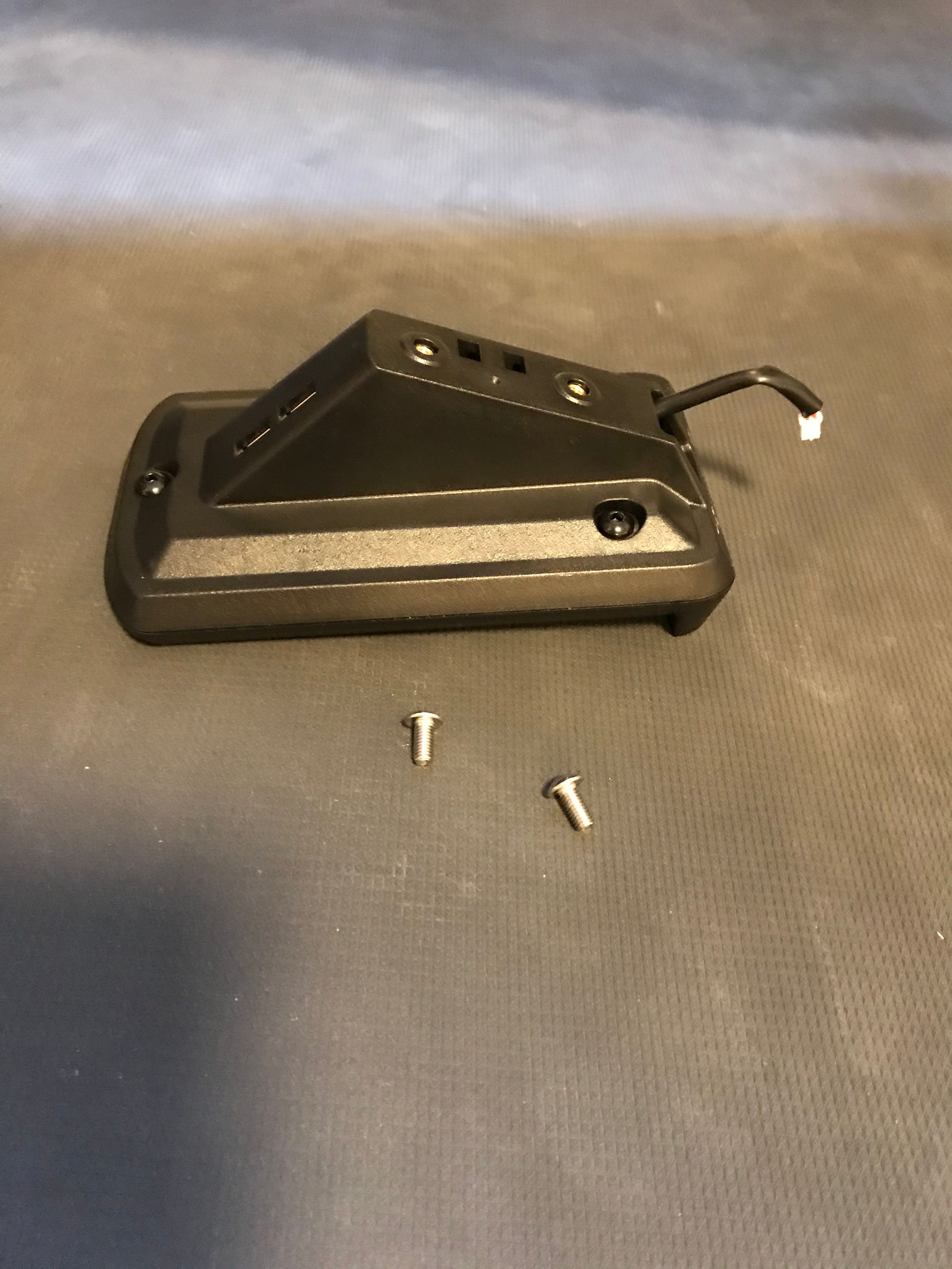

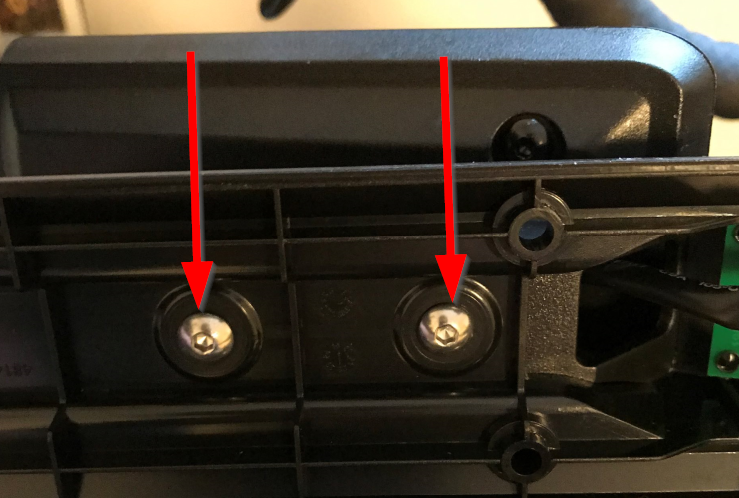

   2. Use the 3 mm hex key to remove the 2 bolts holding the phone holder in place.

   3. Gently slide the phone holder connector through the hole of the plastic base; set aside for later.

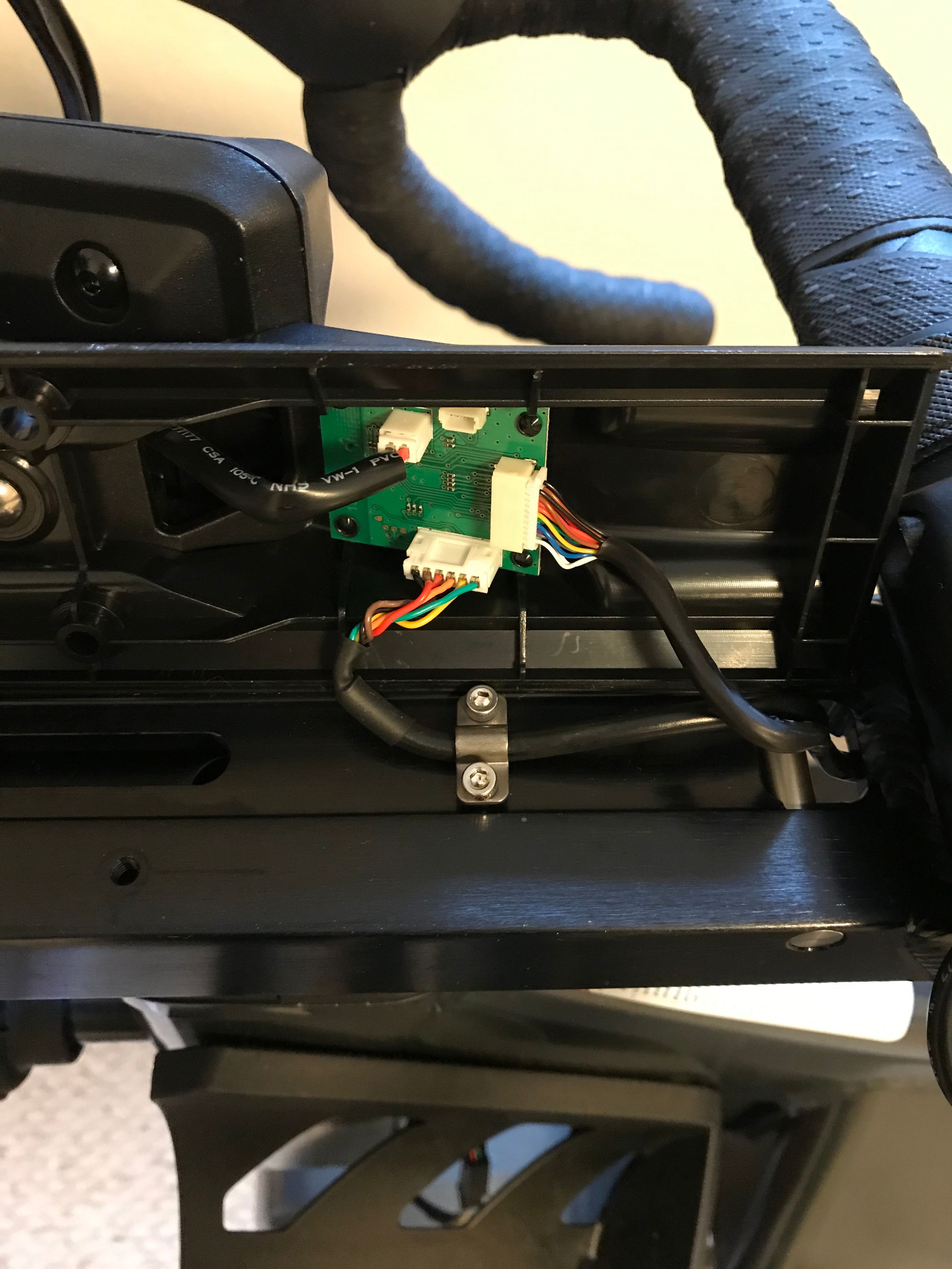

4. Remove connectors from the existing plastic base.
   1. Pull on the connectors to remove them from the receivers.

5. Attach the existing phone holder to the new plastic base.
   1. Thread the connector through the new plastic base and use the existing silver screws to attach the existing phone holder to the new base.

6. Connect all 3 connectors to the new plastic base.
   1. Pay attention to the tabs on the connectors, which align with openings on the receivers.


7. Install the new assembly onto the bike.
   1. Use the existing black screws to connect the new phone holder assembly to the bike.



8. After installing the Upper PCB you will need to contact our support team to assist with re-programming the bike. Click here or email support@stagescycling.com
